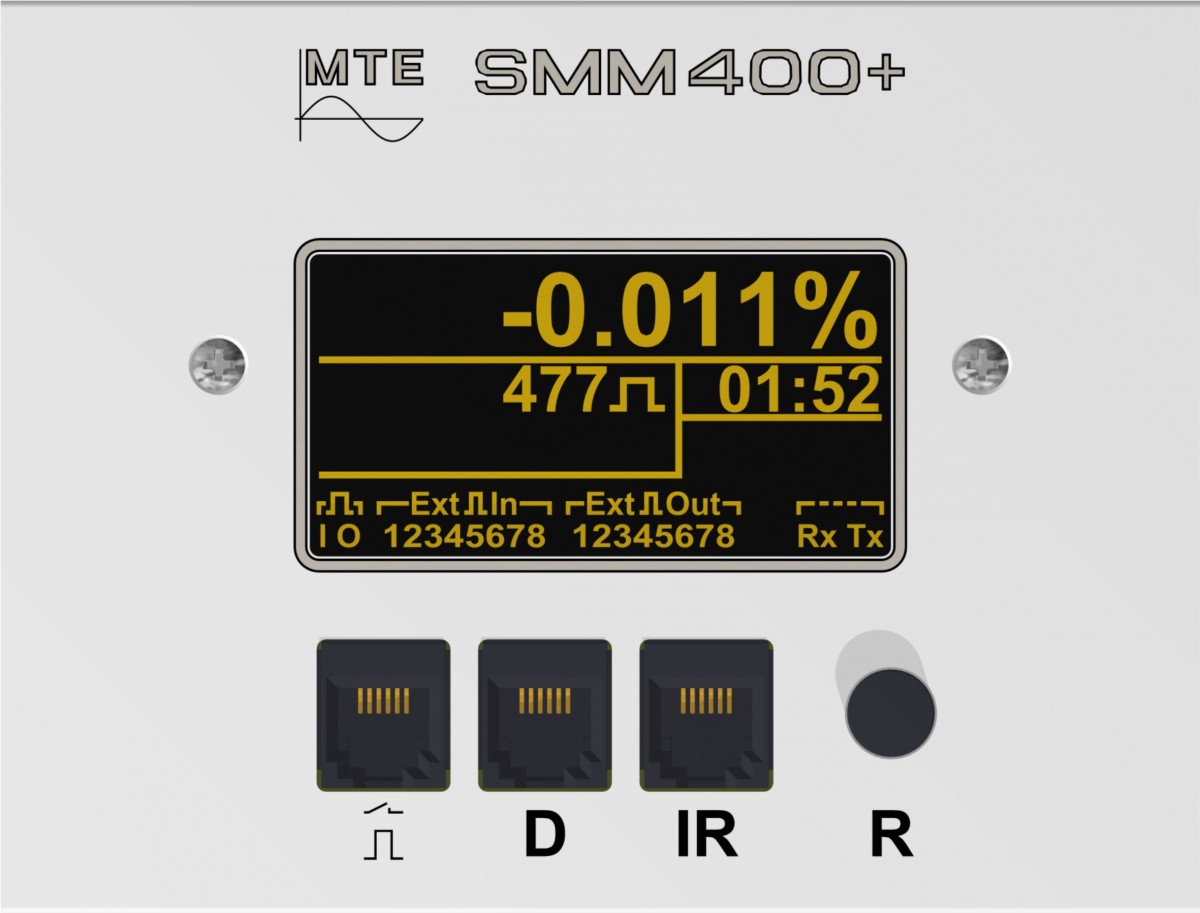

The modular Evaluation System SMM 400 provides error calculation, testing of emitting contacts and communication to tariff device units to the meter under test. Four different versions cover all customer requirements.

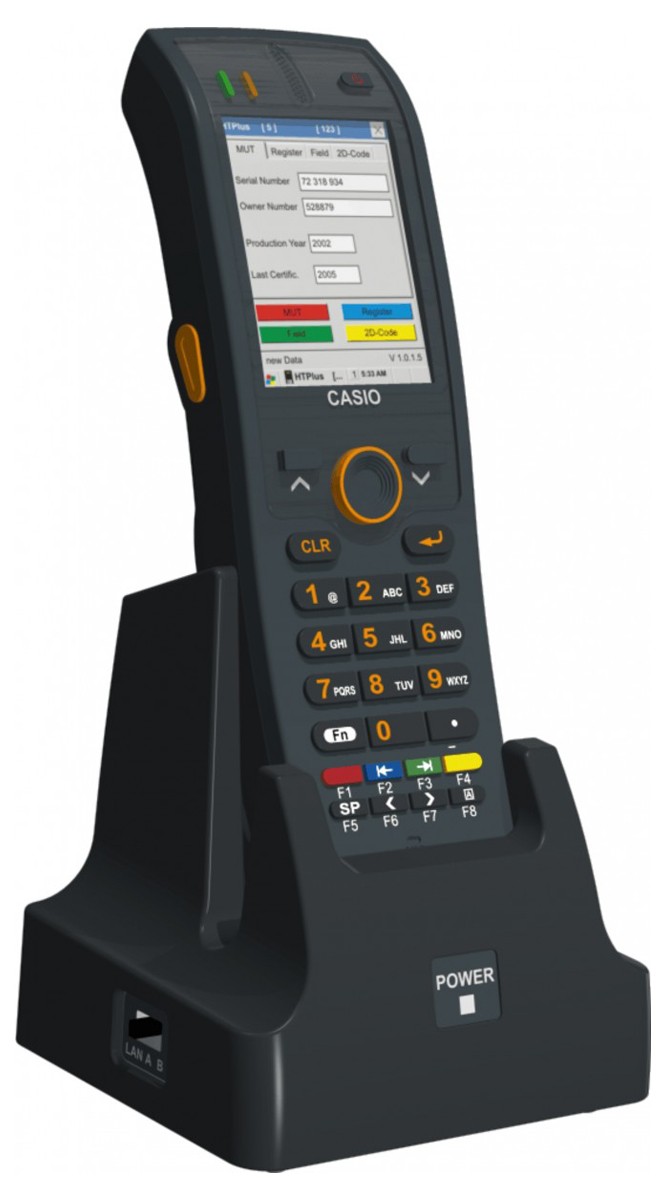

The HT 2010 wireless hand held terminal is designed for recording meter-specific data at meter test systems.
The SH 2003 photoelectric scanning head is suitable for scanning the marks of mechanical rotating disc meters or the detection of light emitting diodes (LED's) of electronic meters. Mode of operation is selectable via a switch.
The SH 11 universal scanning head is suitable for scanning the marks of mechanical rotating disc meters or the detection of light emitting diodes (LED's) of electronic meters plus simulated pulses on LCD displays. Mode of operation is selectable via a switch.
The ICT 2.3 three-phase Isolation Current Transformer is used on multi position test benches, when three-phase meters with closed links between the current and voltage measuring circuits (I-P links) are to be tested.
The EMP 1.3 Quick Connection Device is used together with electricity meter test systems, and is recommended for high volume production output.

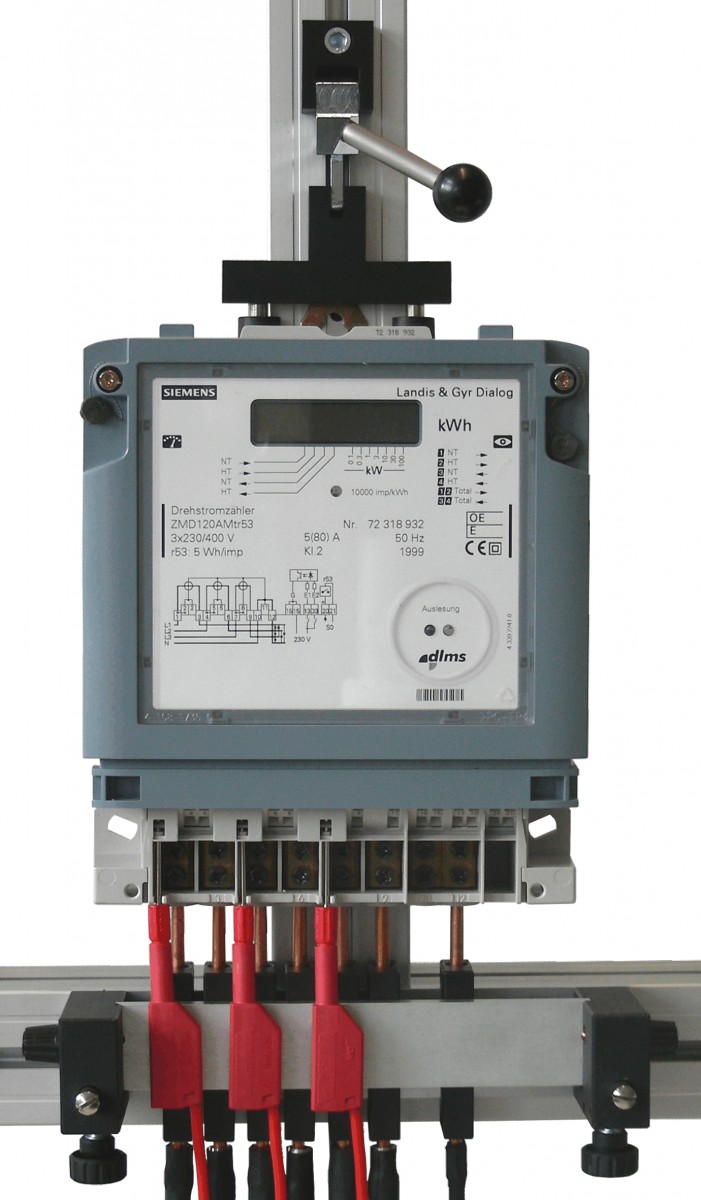

The QCD Quick Connection Device is used together with electricity meter test systems, and is recommended for high volume production output.

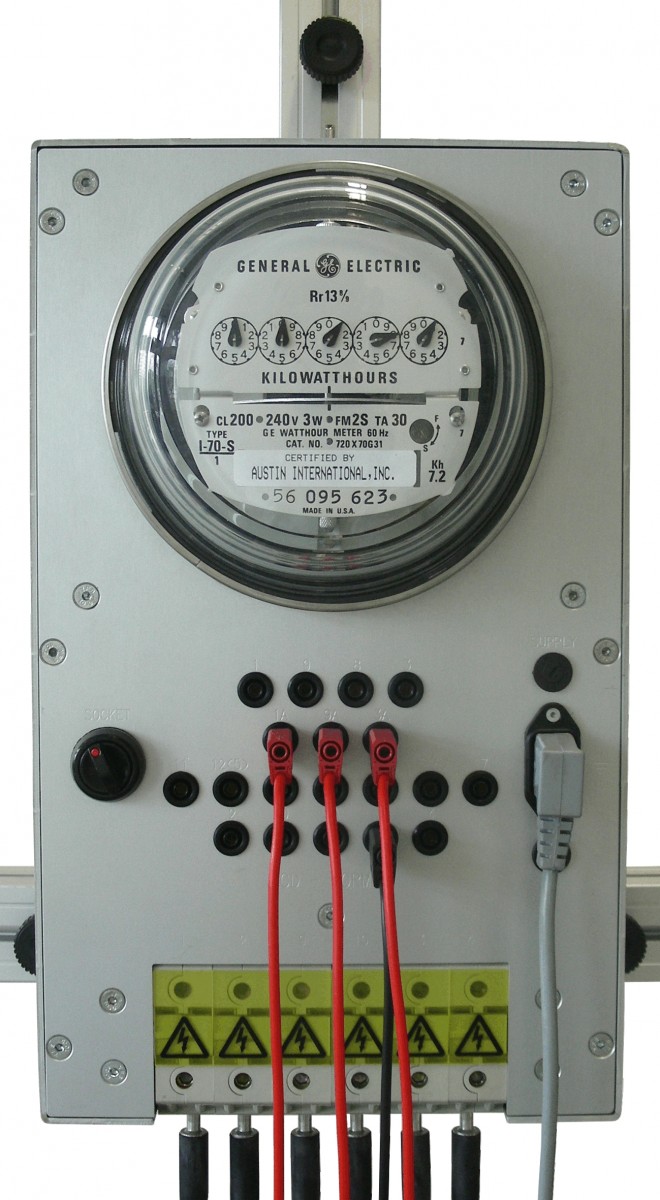

The QCD Form S Quick Connection Device is used for the support and connection of practically all types of self contained (direct connected) or transformer operated ANSI socket meters.

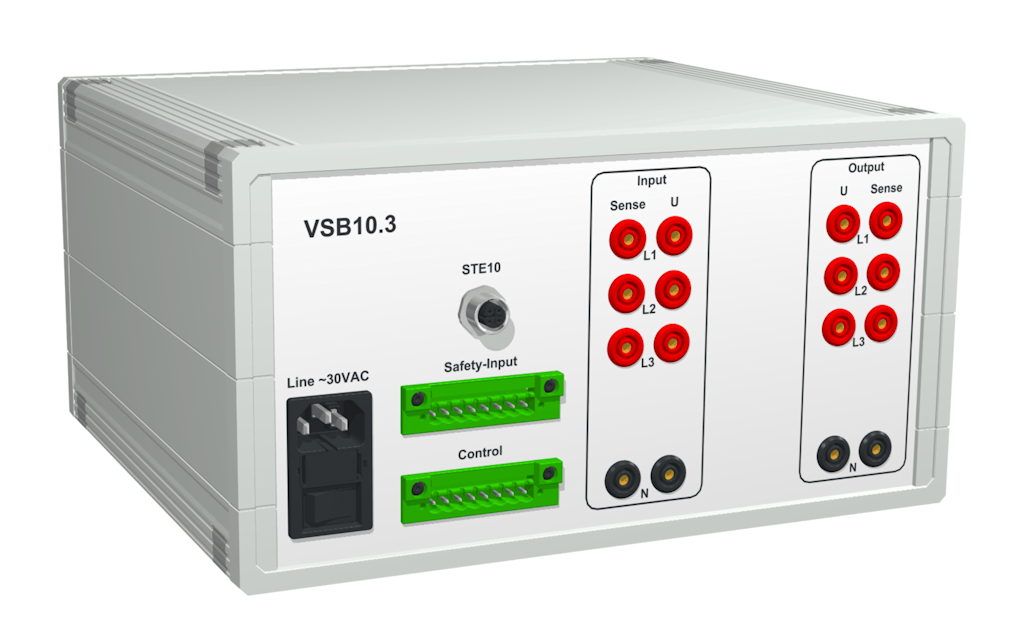

In many meter test stations, separation of energized parts and user cannot be realized by means of stationary separating safety equipment. For this reason, movable or non-separating safety equipment is used. To allow the use of safety switches or light curtains in meter testing stations, a safety related signal evaluation is required. Here a safety relay analyzes the starting conditions and in case of need interrupts the dangerous voltage.
The IMP-IF1 interface adapter is suitable for interfacing MTE reference standards with meters having retransmitting contacts, open-collector transistor outputs or true S0-outputs to allow full testing of meters with these types of outputs interfaces.
Interface between MTE reference standards and meters with ground referenced contacts in the range 50 V … 265 V
The SH 2015 photoelectric scanning head is designed for the efficient and accurate testing of electronic meters.
The SHC range of scanning head supports has been designed for use with the SH 2003 and SH 11 scanning heads.

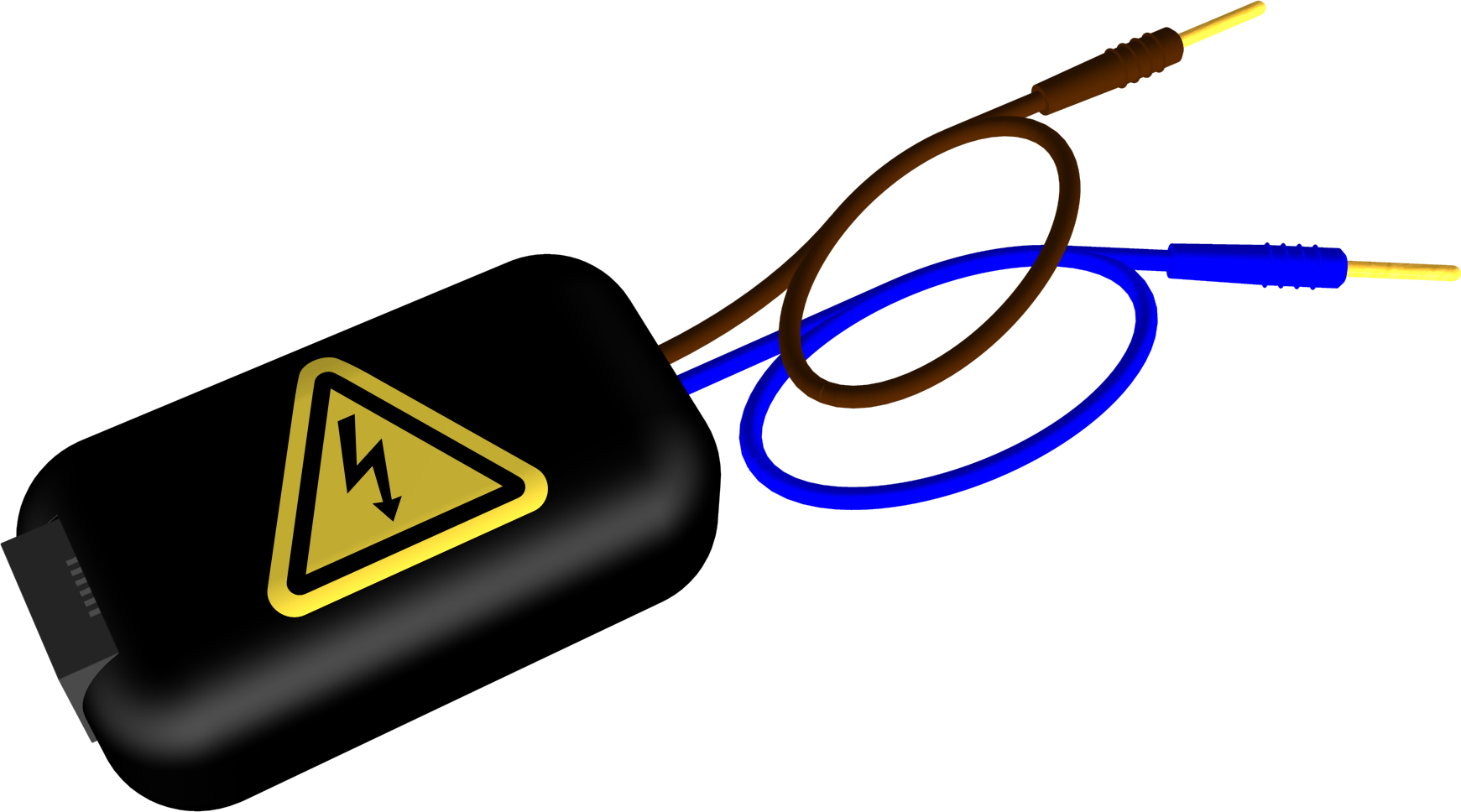

The voltage presence indicator is a lamp drawing the attention of the operator to the presence of dangerous voltages.

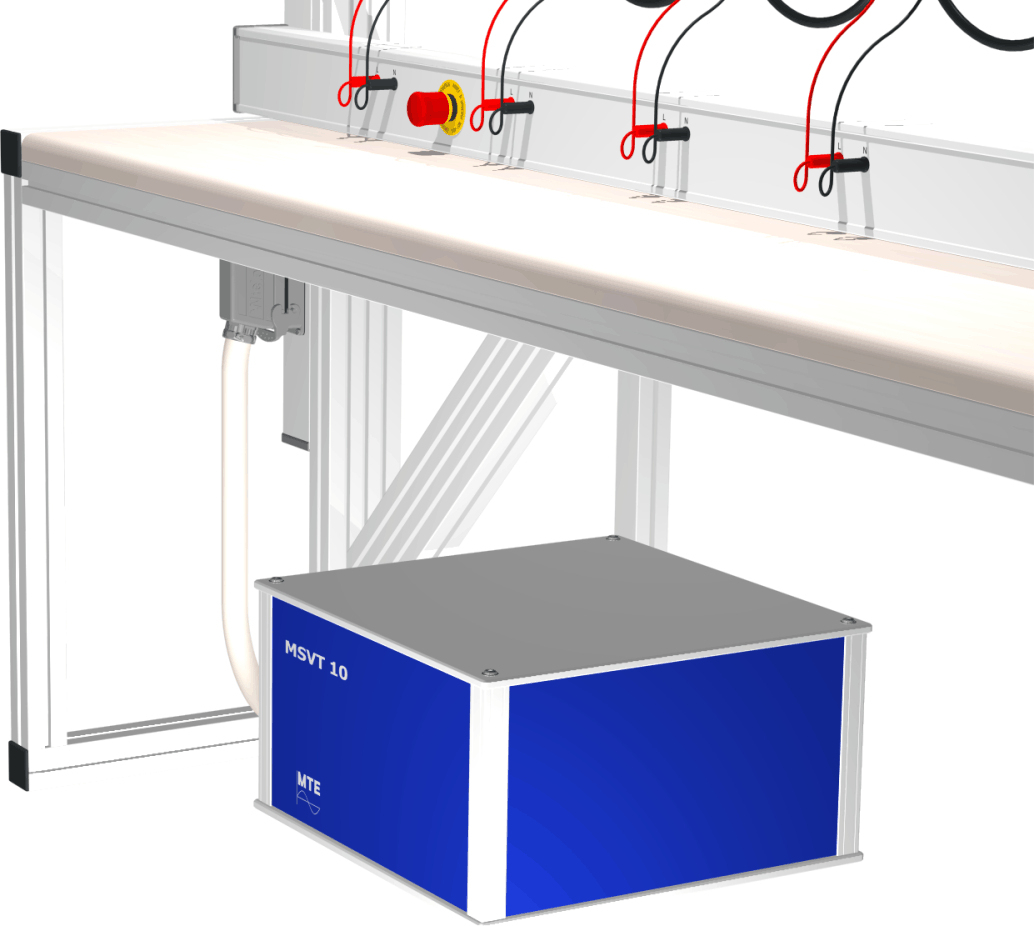

For the testing of multiple single-phase meters with fixed links between the voltage and current path on a test bench galvanic isolation must be provided at each test position. This can be done with isolation transformers for the voltage path or the current path at each position.
The ICT 1.3 three-phase Isolation Current Transformer is used on multi position test benches, when three-phase meters with closed links between the current and voltage measuring circuits (C-P links) are to be tested.
